Manufacturers that require consistent stainless steel cleaning and passivation in a compact automated system often choose ultrasonic automated passivation equipment.
Our ultrasonic automated passivation system performs the entire process sequence — cleaning, rinsing, passivation, rinsing, and drying — inside a single automated process unit.
Unlike traditional multi-tank passivation lines, where parts move through multiple tanks, the ultrasonic automated passivation equipment moves the fluids instead of the parts. Heated chemical and rinse solutions are pumped from storage tanks into the ultrasonic processing chamber and drained between process steps.

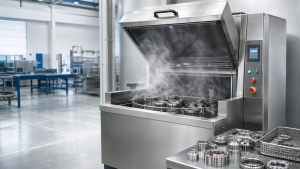

Ultrasonic Automated Passivation Equipment
This approach allows manufacturers to achieve repeatable process control with minimal operator involvement, making the system well suited for production environments where validation, cleanliness, and process consistency are critical.
Typical process chemistries supported include:
- Nitric acid passivation
- Nitric acid with sodium dichromate
- Citric acid passivation
The entire process is controlled by a PLC-based automation system with a touchscreen interface, allowing operators to run user-defined cleaning and passivation cycles — up to 99 recipes — with the push of a button.
Video: Automated Ultrasonic Passivation Equipment for Citric or Nitric Acid
This automated ultrasonic passivation machine demonstrates the automated process for cleaning and passivating stainless steel parts using nitric or citric acid chemistries.
What Automated Passivation Systems Are Designed For
Ultrasonic automated passivation equipment is typically selected when manufacturers need:
- Repeatable cleaning and passivation of stainless steel components
- Reduced operator exposure to chemicals
- Automated process control for regulated industries
- Compact systems where space is limited
- Consistent cleaning of parts with complex geometries
Because ultrasonic energy improves contaminant removal, this type of passivation machine is especially effective for parts with small features, blind holes, or tight internal geometries.
Industries that frequently use these systems include:
- Medical device manufacturing
- Aerospace component processing
- Precision machining operations
- Electronics manufacturing
Benefits of Ultrasonic Automated Passivation Equipment
The core concept behind ultrasonic automated passivation equipment is simple: We move the fluids — not the parts.
Because parts remain stationary in the processing chamber, the system avoids the complexity and cost of traditional multi-tank passivation automation systems. This approach can reduce overall equipment cost by up to 50% compared with conventional automated multi-tank passivation lines.
The process diagram above illustrates how cleaning, passivation, and rinsing solutions are automatically circulated between storage tanks and the ultrasonic processing chamber. A hot air dryer built into the process unit ensures that parts emerge from the passivation machine dry and spot-free.
Video: Automated Customizable 3-in-1 Nitric and Citric Passivation System
Some manufacturers require the flexibility to run multiple passivation chemistries. This 3-in-1 automated passivation system can support:
- Nitric acid passivation
- Nitric acid with sodium dichromate
- Citric acid passivation
Switching between processes can be handled through programmable recipes within the system’s PLC controller.
Need More Throughput?
Dual Ultrasonic Automated Passivation Equipment
For higher production volumes, a dual process unit automated ultrasonic passivation system allows multiple batches to be processed more efficiently without doubling system cost for automation.
Optional rotating baskets further improve cleaning effectiveness by ensuring all part surfaces are exposed to ultrasonic energy and chemical flow.
Explore our other automation systems here: Best Technology Automation Systems
Small Ultrasonic Automated Passivation Equipment
Smaller automated passivation systems are commonly used for lower-volume production or laboratory environments where repeatable cleaning and passivation processes are still required.
Modular heated storage tanks allow detergents and rinse water to be reused, improving process efficiency and reducing chemical consumption.
Because the system automatically pumps solutions in and out of the process chamber, operator exposure to chemicals is minimized. The operator simply loads the parts basket, starts the programmed cycle, and retrieves finished parts once the process is complete.
This approach reduces variability while improving the repeatability required for regulated manufacturing environments such as medical device and aerospace production.
Common Applications for Automated Passivation Equipment
Automated ultrasonic passivation systems are widely used for precision cleaning and passivation of metal components.
Typical applications include:
- Ultrasonic cleaning and passivation of machining coolants, chips, and particulate
- Stainless steel medical device components
- Aerospace hardware passivation per AMS 2700
- Nitric acid passivation types 1–4 per ASTM A967
- Citric acid passivation types 1–5 per ASTM A967 using CitriSurf® solutions
- Surface preparation for surgical implants per ASTM F86
- Maintenance cleaning, rework, or remanufacturing processes
- Applicable case study: Automated Ultrasonic Passivation System for Medical Device and General Parts
These ultrasonic automated passivation machines are particularly useful when both cleaning and passivation must occur in a tightly controlled process sequence.
Learn more about automation benefits on our page: What is Process Automation for Metal Finishing?
CitriSurf® is a registered trademark of Stellar Solutions, Inc. McHenry IL USA.
Automated Passivation FAQs
Learn whether this type of automated passivation equipment is appropriate for your manufacturing process with answers to these common engineering questions.
-
Why are automated systems easier to process validate than manual equipment?
Process control and stability are critical aspects to regulated medical device and aerospace processes. It is important to ensure that a process has input and output variable limits which are defined and fully tested during process design, Equipment Qualification (IQ), Operational Qualification (OQ) and Process Qualification (PQ) validation testing. Setting up a proper DOE (Design of experiments) to test these limits is also important as the results of the DOE will give statistical confidence intervals of the limits.
Being that operators and employees perform various process operations different no matter how instructed in work instructions, the variation of operators must also be captured during process qualification (PQ) validation. An automated system typically eliminates many of the operator variability in the manufacturing process and this process “input” elimination also allows for tighter process output controls.
For example, in our automated passivation system, the elimination of relying on an operator to move the parts basket from stage to stage ensures that the parts remain in the appropriate (wash, rinse, acid passivation, etc) solutions for the process defined times and in accordance with the proper ASTM A967, AMS2700, etc specification. If a parts basket is immersed in the acid passivation solution too short or long duration, the passivation can likely fail and be outside specification limits.
-
Do you need any agitation beyond ultrasonics during the cleaning or passivation process with an automated system?
Our automated cleaning and passivation system includes in-process tank circulation which agitates the solution, alternating between ultrasonics (as fluid movement dissipates ultrasonic energy). This also allows the process tank to filter solution back in the storage tank.
-
In an automated system, are there contamination issues when you pump solutions out of the main processing tank?
Many of our automated cleaning and passivation systems pump the cleaning, rinsing and passivation acid solutions between tanks, unlike a traditional system where the parts are moved from tank to tank.
To reduce any contamination issues, we mount rinse spray nozzles in the cover of the system to rinse down the parts and tank walls. All the plumbing to and from the process tanks is separated to further reduce any contamination. This results in less contamination compared to the drag-out that occurs from moving parts from tank-to-tank in a traditional multi-tank setup.
-
What is the industry standard for acceptable particle count after cleaning or passivation?
Acceptable particle counts depend on the specification which the parts are processed to: ASTM A967, A380, F86, AMS 2700, etc. For passivation, DI rinse water is recommended for best results.
Our automated systems offer conductivity meters which monitor water quality and total dissolved solids. The storage tanks have facility DI water source needle valves which open when conductivity limits are not met. This allows for a continual overflow of the rinse tank until rinse water specifications are reached.
-
What are the pros and cons of ultrasonic automated systems vs. rail-mounted gantry crane automation?
Ultrasonic Automated System
Moves the fluids, not the parts.
Pros:-
Lower System Cost: Typically less expensive to purchase and install.
-
Simplified Maintenance: Fewer moving parts reduce the risk of mechanical failure and simplify upkeep.
-
Compact Footprint: Takes up less space on the production floor.
-
Flexible Tank Placement: Storage tanks can be located outside of the cleanroom or processing area.
-
Closed-Loop Operation: Minimizes operator exposure to chemicals, improving safety and compliance.
Cons:
-
Longer Cycle Times: Requires time to fill and drain the process chamber (typically ~2 minutes each).
-
Single-Basket Workflow: You must wait for the entire cycle to finish before processing the next batch.
-
Process Limitations: Not compatible with pickling or descaling applications.
Rail-Mounted Gantry Crane Automation
Baskets of parts are moved automatically through a series of tanks.
Pros:-
Higher Throughput: Multiple baskets can be processed in succession, increasing production capacity.
-
Scalable Design: Systems can be built much larger to handle high-volume needs.
-
Supports Pickling/Descaling: Capable of handling aggressive chemical processes.
-
Faster Cycles: No fill or drain steps—parts move through already-filled process tanks.
Cons:
-
Higher Initial Cost: Requires more infrastructure and automation.
-
Larger Footprint: Occupies more floor space compared to pump-based systems.
-
Increased Maintenance: More mechanical components introduce additional maintenance needs.
-
Typical Configurations
Automated passivation equipment can be configured for a wide range of production needs.
Systems can be fabricated from tabletop units to larger production systems, typically ranging from:
- 3.5 gallons to 100+ gallons process capacity
- tank lengths from approximately 1 foot to over 15 feet
Systems may also include integrated instrumentation such as:
- pH monitoring
- conductivity meters
- RO / DI rinse water integration
These monitoring systems help maintain consistent process chemistry and rinse water quality during production.
| Model Series | Liquid Capacity (gallons) | Ultrasonic Power (Watts) | Hot Air Dryer (Watts) | Tank Dimensions (l x w x h) | Main Process Unit Dimensions (l x w x h) | Storage Tank Capacity (gallons ea) |
| 1002P | 3.5 | 300 | 1500 | 12″ x 10″ x 8″ | 24″ x 13″ x 18″ (tabletop) | 15 |
| 700P | 9 | 1200 | 3000 | 18″ x 12″ x 10″ | 28″ x 22″ x 39″ | 15-30 |
| 992P | 18 | 1800 | 3000 | 24″ x 14″ x 12″ | 28″ x 22″ x 39″ | 30 |
